Tinaxis Plus, Tinaxis L, AnyLED: equire serial connection to the computer hosting the programming environment

The interface are UART and contains a small electronic board that convert RS232 or USB to TTL accroding the board needs

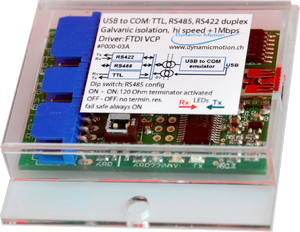

USB high-end interface

  • USB to UART bridge: best in class chipset (FTDI)
  • Driver avalible for most environment, including Windows XP, Vista, 7, 8, CE, MAC, Linux
  • Galvanic separation
  • Speed up to 1Mbit/sec
  • Control LEDS
  • 3 output: TTL, RS485 (half duplex), RS422 (full duplex)

Article P000-034

interface ftdi-300px

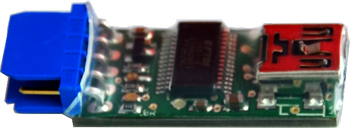

USB low cost

  • USB to UART bridge: best in class chipset (FTDI)
  • Driver avalible for most environment, including Windows XP, Vista, 7, 8, CE, MAC, Linux
  • Speed up to 1Mbit/sec
  • Control LEDS
  • 1 output: TTL

Article P000-036

interface ftdi lowcost-350px

Warning: no galvanic isolation, current can circulate through computer in case of connection error, and damage computer and board

NOT recommended. We take no responsabilities for any damage

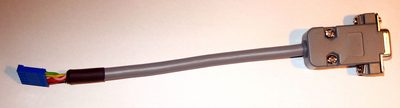

RS232 interface

  • RS232 to TTL

able integrates an electronic board (chip MAX232)

Article P000-016

RS232-Adaptor-400px




The products are also available in kits, with USB stick

Softwares are freely available from the download section (registration required)
