Dynamic Motion has designed serveral encoder versions, based on magnetic field orientation measurement.

Encoders are delivered as kit, to make the assembly with a motor or a shaft. Kit is composed by the circuit and the magnet.



10bit encoder sealed (IP68), aluminium housing

Options:

Signal shape: Incremental or SSI

Driver: line driver RS422 or open drain outputs

Power supply: 5V or 6..24V

Encoder P083-E017





10bit encoder, compact PCB kit with line driver

Rectangular PCB, pinout dedicated to our Tinaxis + BL86B650 controller

Encoder P083-E014

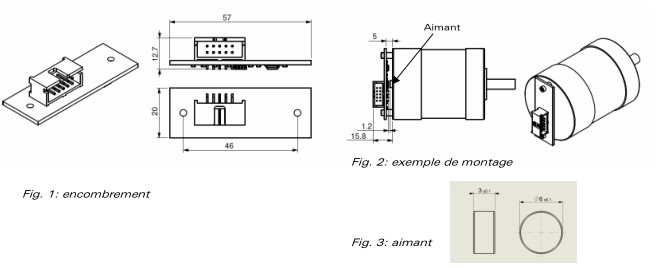

10bit encoder, compact PCB kit (diameter 16 or 20mm)

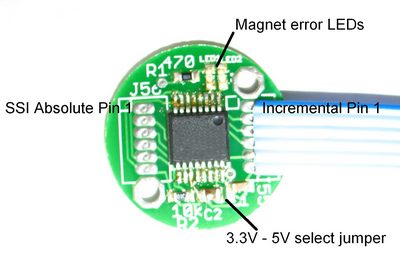

Encoder kit
