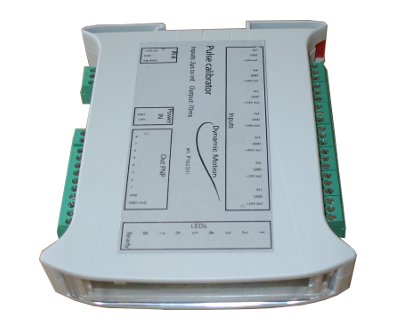

Pulse detector and calibrator

Any pulses generated by a fast sensor passing through this system is calibrated to a time of minimum 50ms duration.

Thanks to this system, extremely short pulses as 2µs can be detected by any PLC or automated systems.

This definitely solve the issue of event losses in fast automated process.

Features:

8 channels, 24V PNP compatible input,with 8xplug with +24V/GND/Input

8 24V PNP outputs

Minimum input pulse duration for reliable detection: 2µs

Maximum input pulse duration: unlimited

Output pulse: constant time, between 50 and 70ms (optionnaly modifiable, ask befor order)

Output "READY"

8 LEDS showing output state

Max 50mA/outputs
